Marine Equipment

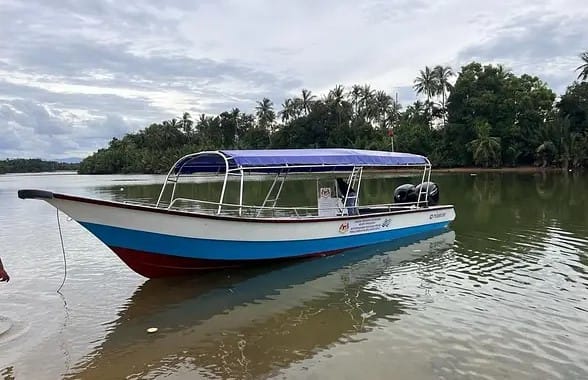

PERBUDI 11
Name: Perbudi 11
Type of vessel: Passenger Boat
Permanent number: TKB00558P
Year built: 2023
Plying limit: Kuala Besut
Main engine horsepower: 223.50 kW
Dimension (L x B x D): 9.75 x 2.51 x 0.80 meter
Gross / Net tonnage of boat: 3.90 / 3.32

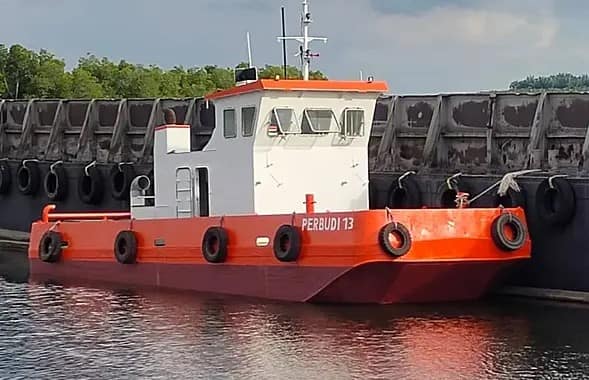

PERBUDI 13
Name: Perbudi 13
Type of vessel: Work Boat
Permanent number: ALM00983X
Year built: 2011
Plying limit: Kuala Besut
Main engine horsepower: 442.00 kW
Dimension (L x B x D): 14.50 x 4.50 x 2.20 m
Gross / Net tonnage of boat : 18.66 / 15.86

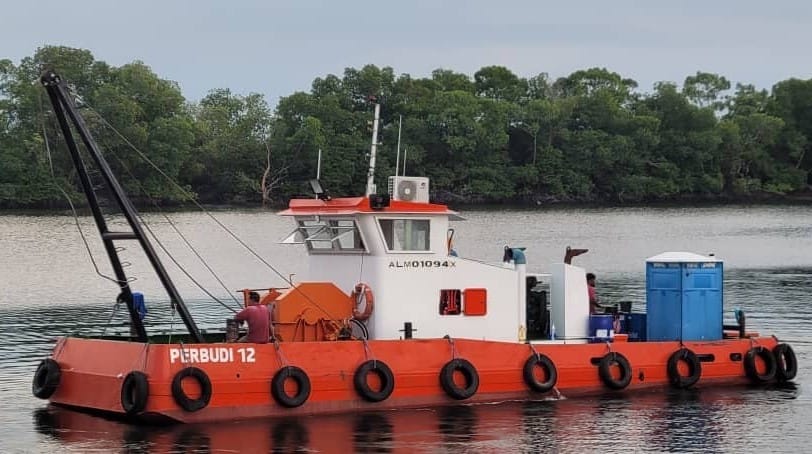

PERBUDI 12
Name: Perbudi 12
Type of vessel: Anchor Boat
Permanent number: ALM01094X
Year built: 2002
Plying limit: Kuala Besut
Main engine horsepower: 432.10 kW
Dimension (L x B x D): 14.50 x 4.70 x 2.00 meter
Gross / Net tonnage of boat: 20.36 / 17.31

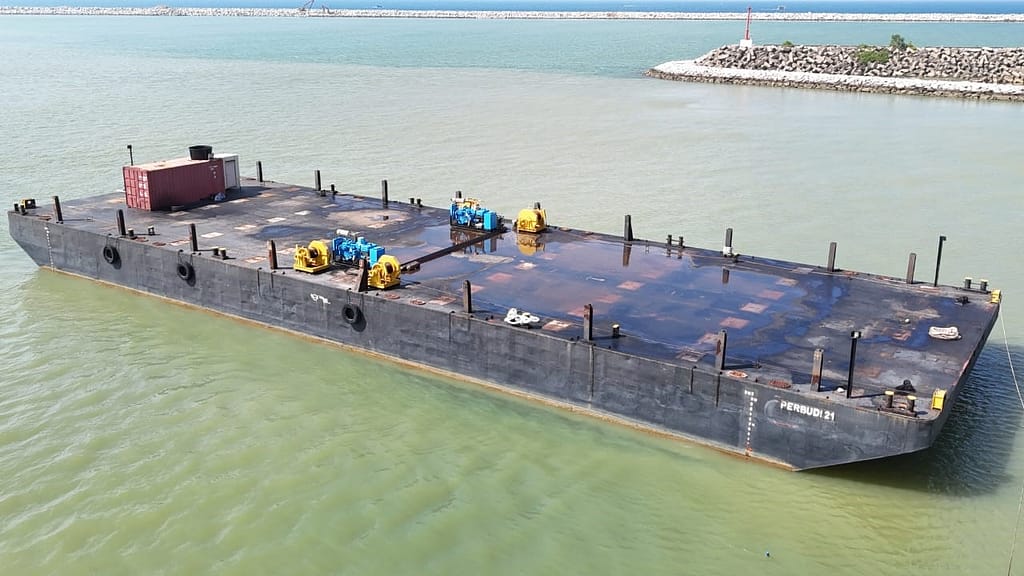

PERBUDI 21
Name: Perbudi 21
Type of vessel: Dumb Barge / Steel Flat Top Barge
Official number: 328330
Year built: 1998
Place built: Indonesia
Class: MY Class
Port of registry: Port Kelang
Gross / Net tonnage: 865 / 260
Length overall: 52.67 m
Breath moulded: 17.07 m
Depth moulded: 3.66 m
PERBUDI 22
Name: Perbudi 22
Type of vessel: Dumb Barge / Steel Barge
Official number: 334313
Year built: 2008
Place built: China
Class: KM Class
Port of registry: Port Kelang
Gross / Net tonnage: 638 / 191
Length overall: 52.69 m
Breath moulded: 15.26 m
Depth moulded: 3.05 m

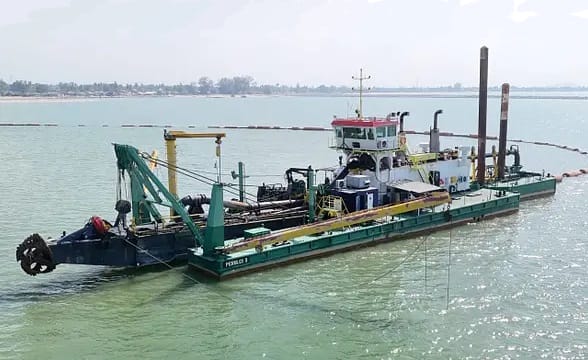

PERBUDI 3
Name: Perbudi 3 (Setiamarine Mutiara)
Model: IHC Beaver 3800
Official number: 328244
Type of vessel: Cutter Suction Dredger
Year built: 1997
Manufacture: IHC Holland
Port of registry: Port Kelang
Class: SCM
Length overall: 48.00 m
Length over pontoons: 36.00 m
Breath: 13.00 m
Depth: 2.97 m
Main pontoon: 21.00 x 5.00 x 3.70 m
Side pontoon: 37.00 x 4.00 x 3.70 m
Mean draught with 100m3 in bunkers approx.: 1.65 m
Max. standard dredging depth: 16.00 m
Internal diameter of suction tube: 600 mm
Internal diameter of discharge pipes: 600 mm
Total installed power: 2557 kW

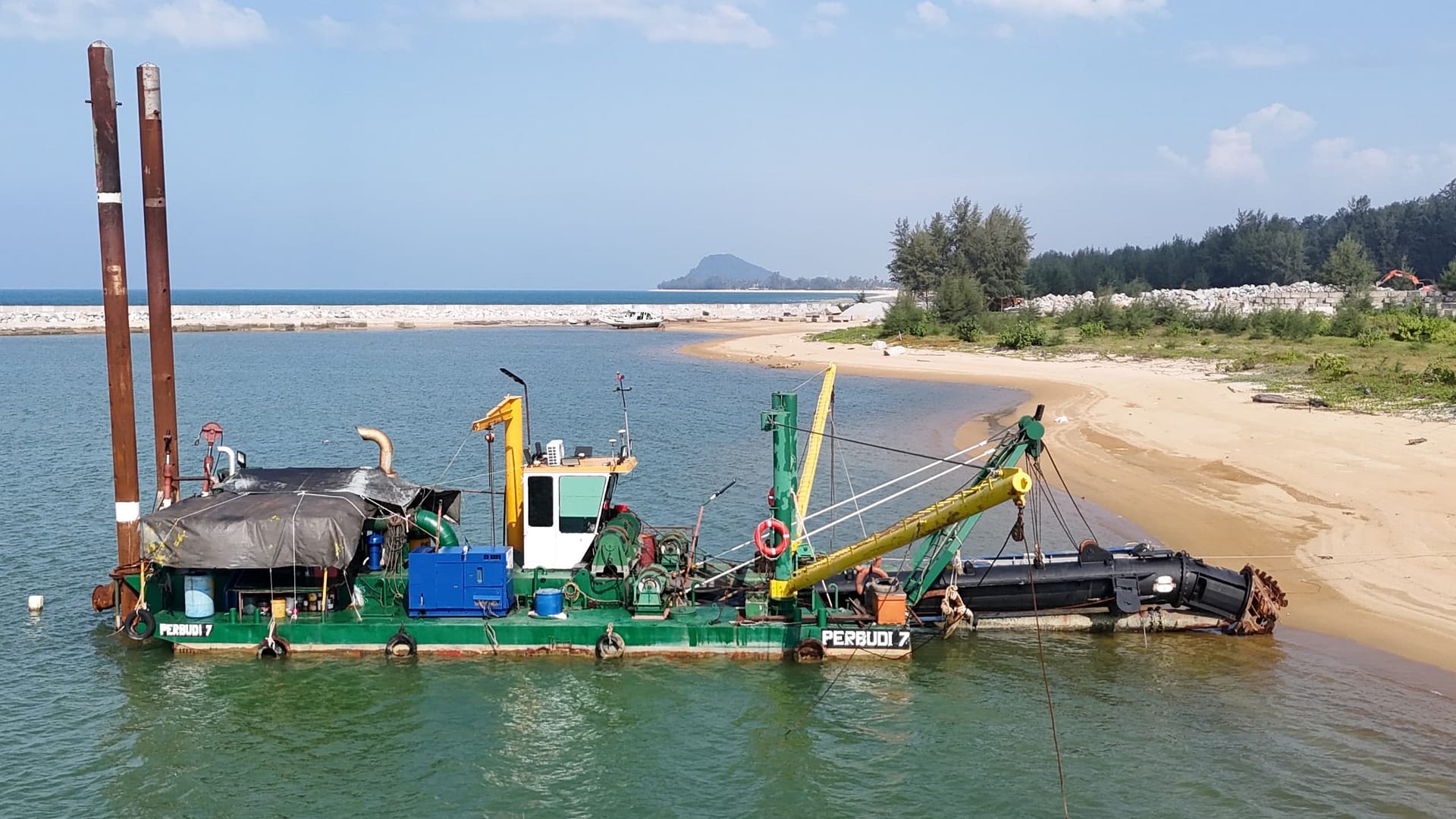

PERBUDI 7
Name: Perbudi 7 (Setiamarine 7)
Model: IHC Beaver 1200
Official number: 336724
Type of vessel: Cutter Suction Dredger
Year built: 2003
Manufacture: IHC Holland
Port of registry: Port Kelang
Class: SCM
Length overall: 26.30 m
Length over pontoons: 16.50 m
Breath: 6.69 m
Depth: 1.87 m
Main pontoon: 10.50 x 2.95 x 2.45 m
Side pontoon: 15.75 x 1.83 x 1.83 m
Mean draught with full bunkers approx.: 1.25 m
Max. standard dredging depth: 10.00 m
Internal diameter of suction tube: 450 mm
Internal diameter of discharge pipes: 450 mm
Total dry weight approx.: 75 t

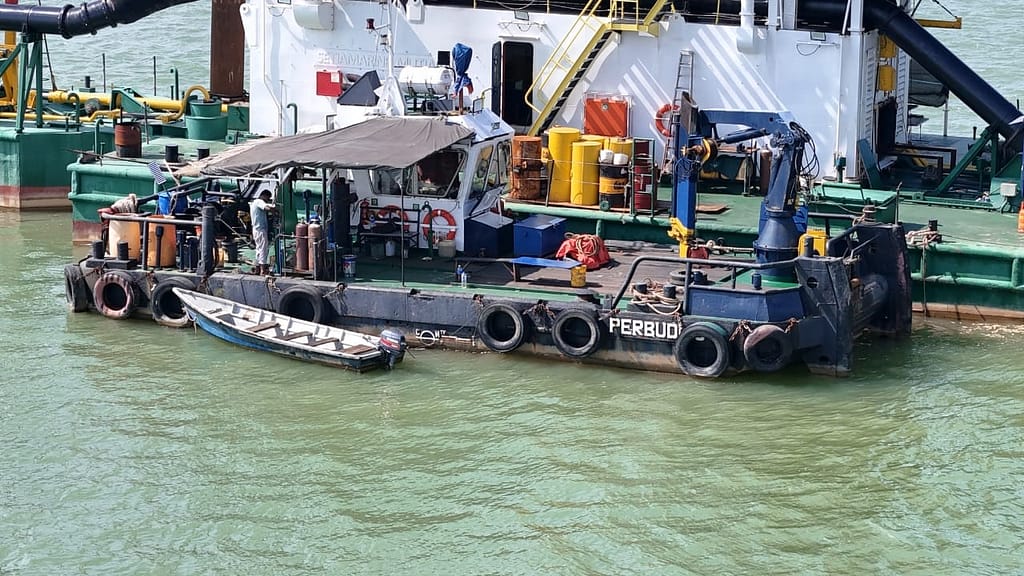

PERBUDI 15
Name: Perbudi 15 (Setiamarine Perkasa)
Type of vessel: Work Boat
Official number: 328241
Year built: 1996
Place built: Holland
Port of registry: Port Kelang
Class: SCM
Main engine horsepower: 164.00 kW x 2
Dimension (L x B x D): 14.40 x 6.00 x 2.25 m
Gross / Net tonnage of boat: 44 / 13
